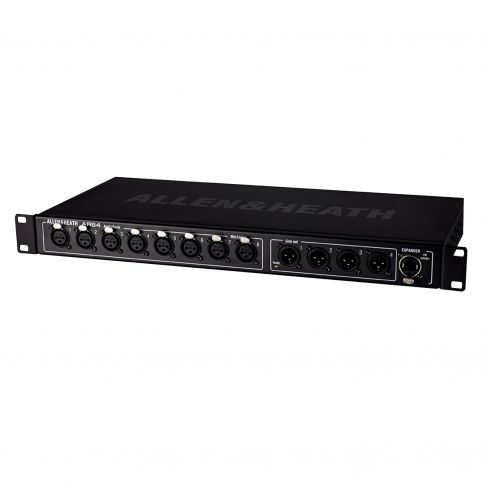

Allen & Heath AR84 8 XLR Input / 4 XLR Output 48kHz AudioRack

Allen & Heath AR84 8 XLR Input / 4 XLR Output 48kHz AudioRack

SKU #: AH-AR2-84-BLK
$1,099.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

AR84 is an 8 XLR input, 4 XLR output AudioRack, compatible Qu, Avantis and SQ mixers, and with the AHM-64 audio matrix processor. Adding an AR84 to your system lets you position some of your I/O up to 100m from the mixer, connected over a single Cat5 cable running Allen & Heath's dSNAKE protocol. dSNAKE provides control to the remote preamp, and all mic preamps are scene recallable.

Allen & Heath AR84 AudioRack Features:

  • 8 Mic Preamps on XLR.
  • 4 XLR Line Outs.
  • dSNAKE Connection with locking Ethercon port.
  • Rack mountable.
  • Compatible with SQ, Qu, Avantis, AHM-64, and GLD.

Allen & Heath AR84 Product Specifications:
Inputs
XLR Mic/Line InputsBalanced
Mic/Line PreampFully recallable
Input Sensitivity-60 to +15dBu
Analogue Gain+5 to +60dB, 1dB steps
Pad-20dB
Maximum Input Level+32dBu
Input Impedance>4kΩ (Pad out), >10kΩ (Pad in)

Mic/Line Channel noise20-20kHz, Direct Out @ unbalanced out
Mic EIN-127dB with 150Ω source
Unity gain (Pad in)-90dBu
Low gain (5dB, Pad out)-93dBu
Mid gain (30dB, Pad out)-89dBu

Mic/Line Channel THD+N  20-20kHz, Direct Out @ unbalanced out
Unity gain (Pad in)0.005% -86dBu @ 1kHz, 0dBu output
Low gain (5dB, Pad out)0.003% -89dBu @ 1kHz, 0dBu output
Mid gain (30dB, Pad out)0.004% -88dBu @ 1kHz, 0dBu output
Outputs
XLR OutputsBalanced, Relay protected
Output Impedance<75Ω
Nominal Output+4dBu = 0dB meter reading
Maximum Output Level+22dBu
Residual Output Noise-91dBu (muted, 20-20kHz)

Operating Temperature0 deg C to 35 deg C
(32 deg F to 95 deg F)

Mains Power100-240V, 50/60 Hz, 20W max

Each AR84 Retail Box Includes:
(1) Allen & Heath AR84 8 XLR Input / 4 XLR Output 48kHz AudioRack
