Chauvet Professional Ground Support 2 Kit Stacking System for Video Wall Setups
SKU #: GROUNDSUPPORT2KIT
$5,186.47
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

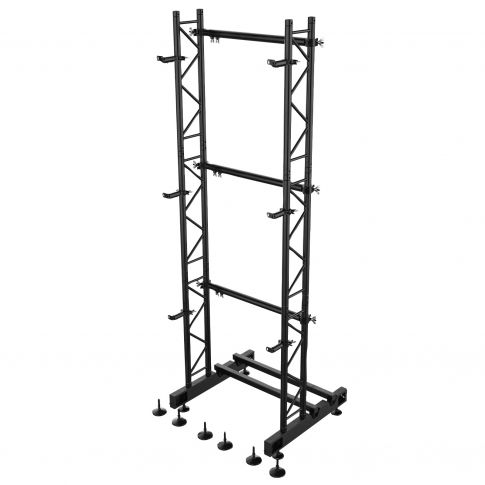

The Ground Support 2 Kit is a proper and safe ground support/stacking system for professional video wall setups. It utilizes the new dual function rig bars to provide a clean, setup for your clients, and is capable of supporting up to 15 video panels of the F-series. Ships in road case with internal dividers to aid in the fast setup of the system for production/rental events.
Chauvet Professional Ground Support 2 Kit Video Wall Stacking System Features:
- Complete ground support solution for stacking video wall on the floor.
- Works for walls between 4.92 ft (1.5 m) and 8.2 ft (2.5 m) wide and as high as 9.85 ft (3 m) tall.
- Combine additional groundsupport2kits to achieve wider walls.
- Use multiple kits to stack wider video walls.
- Support for flat and concave video walls, including 5° and 10° curves.
- Designed to work with the F2, F3, F4IP, F5IP, and Vivid 4 video panels.
- Ships in road case for easy setup and pack after the gig.
- DRB-F100CM, DRB-F50CM dual function rig bars required for operation (not included with groundsupport2kit.)
Chauvet Professional Ground Support 2 Kit Product Specifications:
Construction/PhysicalDimensions: 10.24 x 3.28 x 3.28 ft (3.12 x 1 x 1 m)
Weight (total with case): 322 lb (146 kg)
Weight (ground support without case): 165 lb (74 kg)
Weight (empty case): 157 lb (71 kg)
Exterior Color: Black
Housing Material: Aluminum extrusion and Steel
Maximum vertical stack supported: 3 m tall
Minimum width supported: 1.5 m wide
Ballast needed per 1 M height stack: 100 lb (45 kg)
Ballast needed per 2 M height stack: 175 lb (80 kg)
Ballast needed per 3 M height stack: 250 lb (113.4 kg)
Certifications/Qualifications
CE
IP Rating: IP20 (dry location)
Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)
Each Ground Support 2 Kit Retail Box Includes:
(2) Chauvet Professional Ground Support 2 Kit Floor Bases(2) Chauvet Professional Ground Support 2 Kit Angling Horizontal Bars
(3) Chauvet Professional Ground Support 2 Kit Angling 1m Pipes W/2pcs Clamps
(6) 1m Ladder Truss W/Spigots, Pins, And Safety Clips
(6) Panel Attachment Arms
(10) Tr16 Screw Jacks
(12) M12 Panel Attachment Screws
(1) Warranty Card
(1) Qrg
