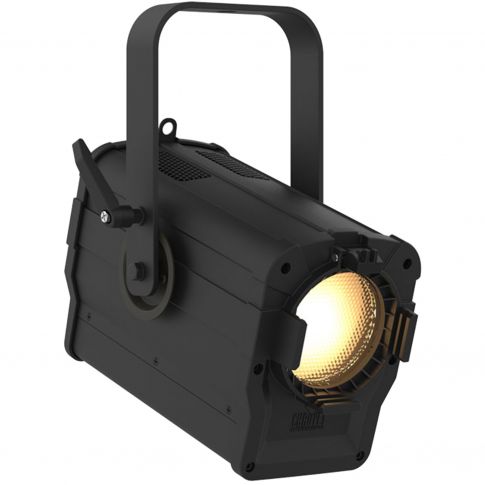

Chauvet Professional Ovation F-55WW Warm White LED Fresnel Lighting Fixture
SKU #: OVATION-F-55WW
$495.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Ovation F-55WW is an efficient warm white LED (3- inch) inkie Fresnel-style fixture ideal for short throw applications in television studios and theatres. It projects a bright, beautifully soft field of light within a 30°- 69° field angle controlled by a manual zoom.
Chauvet Professional Ovation F-55WW LED Fresnel Light Features:
- Compact warm white Fresnel for tight spaces and on-location lighting.
- Soft and even field of light.
- 16-bit dimming resolution for smooth fades.
- Virtually silent operation for use in any situation.
- Manually controlled variable zoom angle between 30° to 69°.
Chauvet Professional Ovation F-55WW Specifications:
Optical:
Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
Color Temperature (at full): 3200 K
CRI: 91
Beam Angle: 18° to 56°
Field Angle: 30° to 69°
Zoom Angle: 30° to 69°
Lumens (30°): 795
Lumens (69°): 1,920
Illuminance (30°) : 279 lux @ 5 m
Illuminance (69°): 100 lux @ 5 m
Dynamic Effects:
Dimmer: Electronic
Shutter/Strobe: Electronicbr /> Zoom: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: No
Color Temperature Presets: No
Dim Modes: 4
Built-in Automated Programs: No
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 25,000 Hz
Construction / Physical:
Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
Weight: 4.8 lb (2.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 3.25 in (83 mm)
Connections:
Power Connection: Edison plug to hard-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR
Cable Length (signal): 1.79 ft (0.54 m)
Cable Length (power): 3.5 ft (1.07 m)
Control:
Control Protocol: DMX
DMX Channels: 1, 2 or 5
Modes/Personalities: 3personalities (1CH, 2CH, 5CH)
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 34 W, 0.267 A @ 120 V, 60 Hz
Power and Current: 38 W, 0.150 A @ 208 V, 60 Hz
Power and Current: 45 W, 0.163 A @ 230 V, 50 Hz
Certifications / Qualifications:
CE, MET
IP Rating: IP20, dry location
Optional Accessories:
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F3.25" Barndoor
Each Ovation F-55WW Retail Box Includes:
(1) Chauvet Professional Ovation F-55WW Warm White LED Fresnel Lighting Fixture
(1) Gel frame
(1) Warranty Card
(1) Quick Reference Guide
