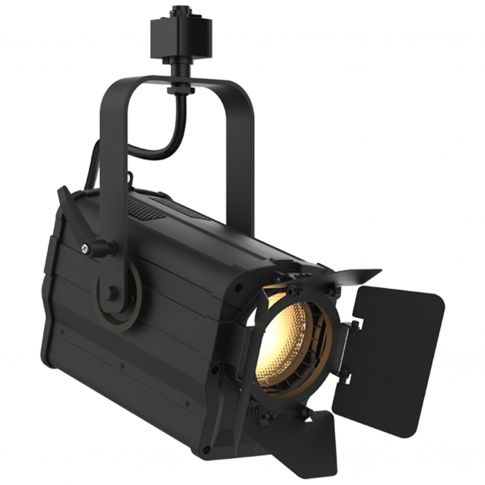

Chauvet Professional Ovation FTD-55WW Warm White LED Fresnel Lighting Fixture
SKU #: OVATION-FTD-55WW
$335.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Ovation FTD-55WW is a track mounted, warm white LED (3-inch) inkie Fresnel-style fixture. This fixture projects a bright, beautifully soft field of light within a 30° - 69° field angle controlled by a manual zoom allowing you to add light where needed. A barn door for the fixture is included to help shape the light and direct the light.
Chauvet Professional Ovation FTD-55WW LED Fresnel Fixture Features:
- Track-mountable and dimmable 3" LED Fresnel.
- Soft and even field of light.
- Virtually silent operation for use in any situation.
- Manually controlled variable zoom angle between 28° to 64°.
Chauvet Professional Ovation FTD-55WW Specifications:
Optical:
Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
Color Temperature (at full): 3200 K
CRI: 91
Beam Angle: 18° to 56°
Field Angle: 30° to 69°
Zoom Angle: 30° to 69°
Lumens (30°): 795
Lumens (69°): 1,920
Illuminance (30°) : 279 lux @ 5 m
Illuminance (69°): 100 lux @ 5 m
Dynamic Effects:
Dimmer: Electronic
Zoom: Manual
Construction / Physical:
Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
Weight: 4 lb (1.9 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 3.26 in (83 mm)
Connections:
Power Connection: Track Type H
Cable Length (power): 1.5 ft (0.45 m)
Control:
Control Protocol: Dimmer
Electrical:
Input Voltage: 120 VAC, 60 Hz
Input Voltage: 230 VAC, 50 Hz
Power and Current: 31 W, 0.257 A @ 120 V, 60 Hz
Power and Current: 30 W, 0.133 A @ 230 V, 50 Hz
Certifications / Qualifications:
CE, MET
IP Rating: IP20, dry location
Required Accessories:
Global Track (110v Version), EUTRAC (220v Version)
Optional Accessories:
Color Blending Filters: DF60X1D, DF20D
Each Ovation FTD-55WW Retail Box Includes:
(1) Chauvet Professional Ovation FTD-55WW Warm White LED Fresnel Lighting Fixture
(1) Track Adaptor
(1) Gel Frame
(1) Set of Barn Doors
(1) Warranty Card
(1) Quick Reference Guide
