Denon Professional DN-474A 2x2-Channel Dual-Impedance Amplifier

Denon Professional DN-474A 2x2-Channel Dual-Impedance Power Amplifier

SKU #: DN-474A
$399.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

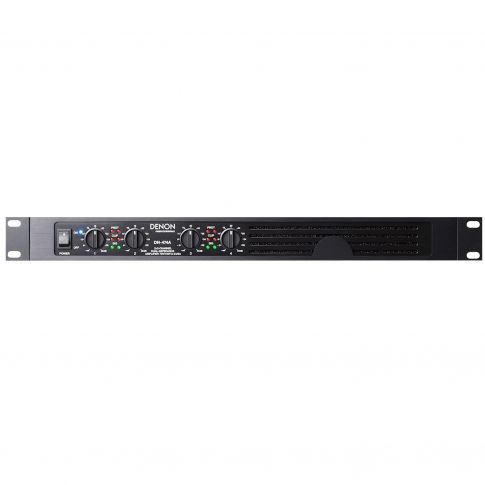

The DN-474A 2x2-Channel Dual-Impedance Amplifier is designed for contractor/install market applications which specify installed speaker systems requiring 70V/100V inputs, and has the added flexibility of handling lo-impedance loads (4Ω/8Ω). The amplifier is split so that two channels handle the lo-impedance speakers, while two channels take care of the 70V/100V speaker runs. This very versatile, one rack space amplifier has built-in short circuit protection - and LED indicators for signal present, clipping status and thermal interruption on the front panel. Engineered for the distribution of multiple 70V/100V speaker systems over long cable runs - such as in-ceiling speakers, surface-mount speakers and paging horns, and also for shorter runs to lo-impedance speakers.

Denon Professional DN-474A 2x2-Channel Dual-Impedance Amplifier Features:

  • 4-Channel Class-D amplifier.
  • 2 X 120 Watts with 70V/100V outputs.
  • 2 X 150/90 Watts with 4/8-ohm loads.
  • Euroblock inputs and outputs.
  • Separate gain controls for each channel.
  • Signal, clipping and thermal interruption indicators.
  • Short-circuit and open-circuit protection.

Denon Professional DN-474A Specifications:
Total Harmonic Distortion: < 0.1%
Frequency Response: 100 Hz - 15 kHz (0 +/-1 dBv)
Signal to Noise Ratio: > 95 dB
Channel Separation: > 70 dB
Input Sensitivity: 0.9 - 1.1 V (0 +/-1 dBv)
Input Impedance: 20 kΩ balanced or 10 kΩ unbalanced

Connectors
(8) Euroblock channel outputs - (2) per channel (70V, 100V, 4Ω, 8Ω)
(4) Euroblock channel inputs (ground, -, +)
(1) IEC AC power inlet

Power
Connection: IEC
Input Voltage: 100 - 240 VAC, 50/60 Hz

Dimensions: 19.0" w x 11.1" d x 1.7" h (483 x 281 x 44mm)
Weight: 10.4 lbs (4.7 kg)

Each DN-474A Retail Box Includes:
(1) Denon Professional DN-474A 2x2-Channel Dual-Impedance Amplifier
(2) 6-Pin Euroblock Connectors
(4) 4-Pin Euroblock Connectors
(1) Power Cable
(1) Rack Ears with Screws
(1) User Guide
(1) Safety & Warranty Manual
