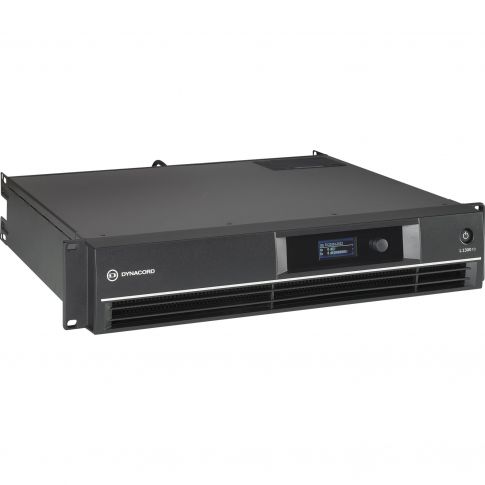

Dynacord L1300FD DSP 2 x 650 W Power Amplifier for Live Performance Applications
SKU #: L1300FD
$969.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Dynacord L Series are professional dual channel audio amplifiers for live and mobile applications. Integrated digital signal procesing provides access to professional speaker processing with FIR Drive technology. L Series amplifiers utilize Class A/B resp. Class H topologies, which provide market leading acoustic performance and reliability. The connectivity is optimized for the needs of mobile applications. A front panel LC display allows local control and supervision of the amplifier. An intuitive system control software allows fast system setup, flexible system control and comprehensive supervision.
Dynacord L1300FD Power Amplifier Features:
- Professional DSP amplifier for live and mobile application.
- Fully integrated professional speaker processing with FIR Drive technology.
- Market leading acoustic performance and rock solid reliability.
- Intuitive system control software, makes setup and control easy.
- Live performance DSP amplifier.
- True 2 ohm stability.
Dynacord L1300FD Specifications:
Load Impedance: 2 Ω, 2.6 Ω, 4 Ω, 8 ΩMaximum Output Power, Single Channel: 1100 W, 950 W, 660 W, 350 W
Maximum Output Power, Dual Channel: 1000 W, 850 W, 600 W, 320 W
Maximum Output Power, Bridged: 2000 W, 1200 W
Maximum RMS Voltage Swing THD = 1%, 1 kHz: 55.3 V
Voltage Gain Ref.1 kHz: 32.0 dB
THD at 450 W/4 Ω MBW = 80 kHz, 1kHz: < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz: < 0.1%
DIM30, 3.15 kHz, 15 kHz: < 0.05%
Maximum Input Level: +21 dBu
Crosstalk ref. 1 kHz, at 100W/4 Ω: < -80 dB
Frequency Response, ref. 1 kHz: 10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced: 20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω: >104 Db
Output Noise, A-weighted: < -68 dBu
Output Stage Topology: Class AB
Power Requirements: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 MaximumOutput Power @ 4 Ω: 550 W
Mains Fuse: 240 V/230 V: T10AH; 120 V/100 V: T20AH
Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, In rush current limiters, Turn on delay
Cooling: Front-to-rear, 3-stage-fans
Ambient Temperature Limits: +5°C to +40°C (40°F to +105°F)
Safety Class: I
Color: Black
Dimensions (W x H x D): 19" x 3.4" x 18.2" (483 x 88 x 462.4mm)
Weight: 12.9 kg (28.4 lb)
Signal Processing: FIR Filters, Audio Limiters Output delay per channel, 31 band GEQ per channel, PEQ per channel, Load impedance
Accessories: RMK15 (rear rack mount kit), Multi AmplifierRemote Control (MARC) software
Test signal for max. output power according IHF-A-202 (Dynamic-Headroom, burst 1 kHz/20 ms on/480 ms off/low level -20 dBu).
Each L1300FD Retail Box Includes:
(1) Dynacord L1300FD DSP 2 x 650 W Power Amplifier for Live Performance Applications
(1) Mains cord
(1) USB cable
(1) Installation manual
(1) Safety instruction card
