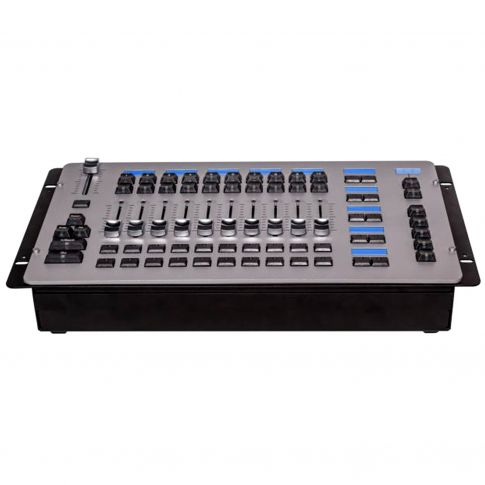

Elation Professional M-Series Playback II Module Lighting Control Console
SKU #: MSPM01
$4,800.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.
Multiple Playback Modules can be added to the M-Series console.
Elation Professional M-Series Playback II Module Lighting Control Console Features:
- 10 x PlayPaired buttons.
- Master Go section.
- 10 x motorized playback faders.
- 10 x pause/back buttons.
- 10 x go buttons.
- 10 x flash buttons.
- 10 x PlayPaired buttons.
- 10 x LCD displays.
- Three-digit display for actual bank number.
- 5 x Fast Keys for quick access to banks or other functions.
- Master Go section.
- Grand Master fader with flash button.
- Tabletop and 19" rackmount format.
Elation Professional Playback II Module Specifications:
M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)
Physical
Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)
Control/User Interface
10 x motorized playback faders
10 x pause/back buttons
10 x go buttons
10 x flash buttons
10 x PlayPaired buttons
10 x LCD displays
Three-digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
Connections
M-Series Module link USB: Neutrik locking RJ45 Ethercon sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A
Approvals
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE
Each Playback II Module Retail Box Includes:
(1) Elation Professional M-Series Playback II Module Lighting Control Console
(1) 1.5 m power cable, 3-pin IEC: P/N 11501012
(1) Ethercon patch cable: P/N 11840144
(1) USB cable: P/N 11840066
