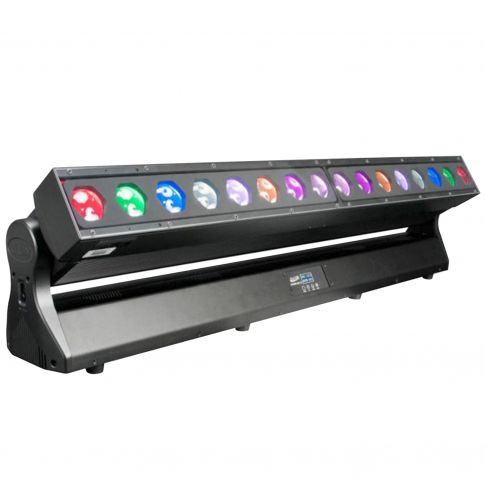

Elation Professional Chorus Line 16 40W 4-in-1 RGBW LED 16 Pixel Bar Wash Luminaire

Elation Professional Chorus Line 16 40W 4-in-1 RGBW LED 16 Pixel Bar Wash Luminaire

SKU #: CHORUSLINE16
Reg. $3,200.00
Now $2,740.40

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

CHORUS LINE 16 is a 16 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K - 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 etherCON, and powerCON in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).

Elation Professional Chorus Line 16 Bar Wash Features:

  • 16 Pixel Bar Wash Luminaire with 40W 4-in-1 RGBW LEDs.
  • Motorized 4° to 40° Zoom and 220° Tilt Movement.
  • RGBW Color Mixing and Full Pixel Control.
  • 2,700K - 7,000K Linear Color Temperature Range.
  • 64 Color Presets and 14 Unique Color Macros.
  • Electronic Strobe, 16-bit Variable Dimming Curve Modes.
  • Adjustable LED Refresh Rate Frequency.
  • Adjustable LED Gamma Brightness.
  • Flicker Free Operation for TV and FILM.
  • DMX, RDM, Kling-Net, Art-Net Protocol Support.

Elation Professional Chorus Line 16 Specifications:
Source
(16) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

Photometric Data
5,700+ Total Lumens
20,478 LUX 1903 FC @16.4 ft (5m) (Full ON (4° Min Zoom)
570 LUX 53 FC @16.4 ft (5m) (Full ON (37° Max Zoom)

Effects
Motorized 4° to 40° Zoom and 220° Tilt Movement
RGBW Color Mixing and Full Pixel Control
2,700K - 7,000K Linear Color Temperature Range
64 Color Presets and 14 Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes

Color
RGBW

Control / Connections
3 DMX Channel Modes (78 total channels)
DMX, RDM, Kling-Net, and Art-Net Protocol Support
Adjustable LED Refresh Rate (900-25,000 Hz)
Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16-Bit Resolution Zoom and Tilt Movement
5pin DMX In/Out
RJ45 EtherCON In/Out
powerCON Power In/Out
With Wired Digital Communication Network

Size / Weight
Length: 42.05" (1068mm)
Width: 7.44" (189mm)
Vertical Height: 11.46" (291mm)
Weight: 47.0 lbs (21.3 kg)

Electrical / Thermal
AC 100-240V - 50/60Hz
739W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

Approvals / Ratings
CE | cETLus | IP30

Each Chorus Line 16 Retail Box Includes:
(1) Elation Professional Chorus Line 16 40W 4-in-1 RGBW LED 16 Pixel Bar Wash Luminaire
(2) Replacement Lens Covers
(2) Omega Brackets
(1) Safety Cable
(1) Power Cable
