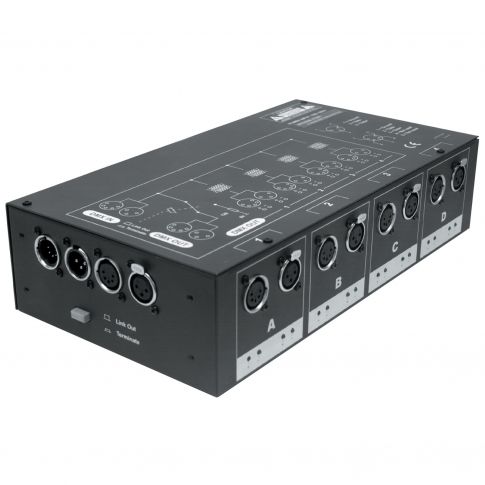

Elation Professional DMX-Branch/4 Signal Splitter / Booster

DMX-Branch/4 is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4 includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to 4 additional units, 4 sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs. Flexible installation options are possible like truss mounting using the included 3/16" (4.7625mm) threaded hole for a clamp (not included), and a 19-inch rack mounting kit is included.

Elation DMX-Branch/4 Splitter / Booster Features:

• 3pin & 5pin DMX Inputs.
• 3pin & 5pin DMX Outputs (thru.)
• 4-Way 3pin & 5pin Isolated DMX Outputs.
• Link Out / Terminate Button.
• Linkable Up To (4) Units.
• DMX Data LED Indicators.
• 19-inch Rack Mount Kit (included.)
• 3/16" (0.1875mm) Threaded Hole for Clamp (not included.)
