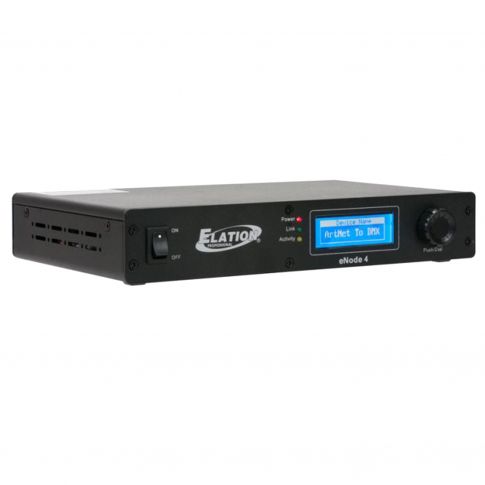

Elation Professional eNode4 4 Universe Artnet/sACN to DMX Interface
SKU #: ENODE4
$560.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The new eNode4 features (4) universal DMX ports, (2) RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512, and ArtNet support, ArtNet-DMX bilateral signal conversion,a DMX splitter function (1 input / 3 outputs), and broadcast and backup modes.
Elation eNode4 4 Universe Interface Features:
- (4) Universal DMX Ports (can be set as Input or Output.)
- (2) RJ45 TCP/IP 10/100M Ethernet Connections.
- Rotary Menu Wheel / Function Selection Button.
- LCD Menu / Function Display.
- PowerCON Power In.
- Auto MDI/MDIX, DMX-512, and ArtNet Support.
- ArtNet - DMX Bilateral Signal Conversion.
- DMX Splitter Function (1Input / 3 Outputs.)
- LCD Display & LED Indicators.
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices.)
- Backup Mode.
Elation Professional eNode4 Specifications:
Control / Connections
(4) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Size / Weight
Length: 10.0" (255mm)
Width: 6.8" (173mm)
Vertical Height: 1.7" (43mm)
Weight: 3.5 lbs. (1.6kg)
Electrical / Thermal
AC 100-240V - 50/60Hz
5W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)
Approvals / Ratings
CE | cETLus | IP20
Installation
Any Flat Surface Or On A Truss With Included Bracket
Each eNode4 Retail Box Includes:
(1) Elation Professional eNode4 4 Universe Artnet/sACN to DMX Interface
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
