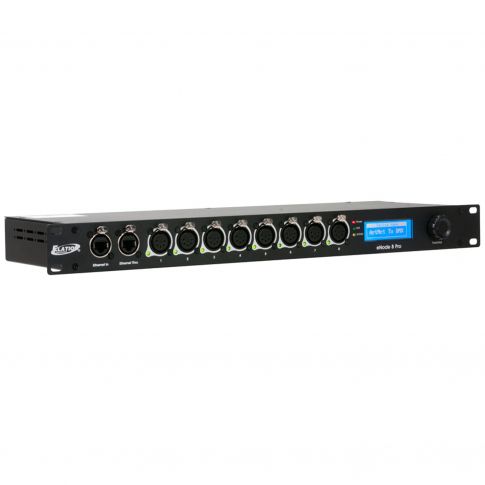

Elation Professional eNode8 Pro ArtNet to DMX Converter
SKU #: ENODE8PRO
$960.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The new eNODE8 PRO features (8) universal DMX ports, (2) RJ45 TCP/IP 10/100M Ethernet ports, auto MDI/MDIX, DMX-512, and ArtNet support, ArtNet-DMX bilateral signal conversion, a DMX splitter function (1 input / 3 outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs), and broadcast and backup modes.
Elation eNode8 Pro ArtNet to DMX Converter Features:
- (8) Universal DMX Ports (can be set as Input or Output).
- (2) RJ45 TCP/IP 10/100M Ethernet Connections.
- Rotary Menu Wheel / Function Selection Button.
- LCD Menu / Function Display.
- PowerCON Power In.
- Auto MDI/MDIX, DMX-512, and ArtNet Support.
- ArtNet - DMX Bilateral Signal Conversion.
- DMX Splitter Function (1Input / 3 Outputs or 1A Input / 3A Outputs and 1B Input / 3B Outputs).
- LCD Display & LED Indicators.
- Broadcast Mode (One Device Transmits Same Signal to Other Connected Devices).
- Backup Mode.
Elation Professional eNode8 Pro Specifications
Control / Connections
(8) 5pin DMX Ports
(2) RJ45 TCP/IP 10/100M Ethernet Connections
Rotary Menu Wheel / Function Selection Button
LCD Menu / Function Display
PowerCON Power In
Size / Weight
Length: 19.0" (482mm)
Width: 6.3" (160mm)
Vertical Height: 1.7" (44mm)
Weight: 4.6 lbs. (2.1kg)
Electrical / Thermal
AC 100-240V - 50/60Hz
7W Max Power Consumption
35.6°F (2°C) to 113°F (45°C)
Approvals / Ratings
CE | cETLus | IP20
Installation
Any Flat Surface Or Standard 19" (482mm) Rack Mount
The eNode8 Pro Retail Box Includes:
(1) Elation Professional eNode8 Pro ArtNet to DMX Converter
(1) 5 ft (1.5m) powerCON Cable
(2) EtherCON Cable Connector Carrier
