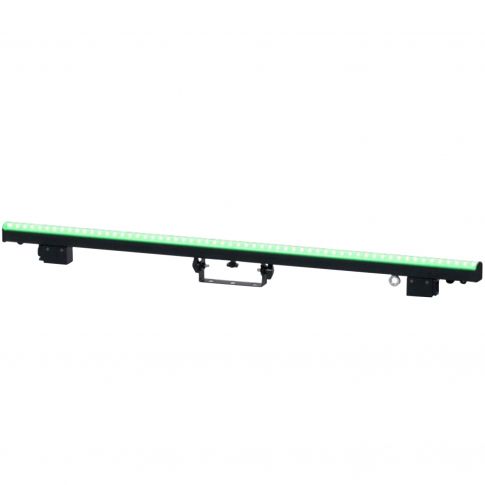

Elation Professional PIXEL BAR 60IP Outdoor Rated LED Lighting Bar

Elation Professional PIXEL BAR 60IP Outdoor Rated IP65 LED Lighting Bar Featuring 60x Tri-Color RGB SMD LEDs

SKU #: PIXELBAR60IP
$212.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The PIXEL BAR 60IP is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the Pixel Driver 4000 (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.

Elation Professional PIXEL BAR 60IP IP65 LED Lighting Bar Features:

  • Outdoor IP65 Rated.
  • (60) RGB SMD LEDs | 1 meter / 3.3 feet.
  • 16mm Pixel Pitch | 44,000Hz PWM.
  • Flicker Free Operation for Broadcast TV and FILM.
  • Magnetic End Caps - Seamless End-to-End Spacing.
  • Integrated Adjustable Mounting Bracket.
  • Square and Rounded Frosted Lens Included.
  • 2ft (0.6m) Power/Data Jumper Cable included.
  • Proprietary IP Rated Power/Data Combo Cables.
  • Available in 2/3/5/10/12/15/20/25/30/50 Meter Lengths.

Elation PIXEL BAR 60IP Specifications:
Source
0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 but per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz

Connections
4pin Power/Data In/Out

Size/Weight
Length: 38.0" (967mm)
Width: 1.3" (34mm)
Height: 3.3" (83mm)
Weight: 2.6 lbs. (1.2kg)

Electrical
Max Power Consumption: 12W

Approvals
CE | cETLus | IP65

Each PIXEL BAR 60IP Retail Box Includes:
(1) Elation Professional PIXEL BAR 60IP Outdoor Rated IP65 LED Lighting Bar Featuring 60x Tri-Color RGB SMD LEDs
(1) 2 ft (0.6m) 4pin 16AWG Power/Data Jumper Cable
(1) Frosted Square Lens Cover
(1) Frosted Round Lens Cover
