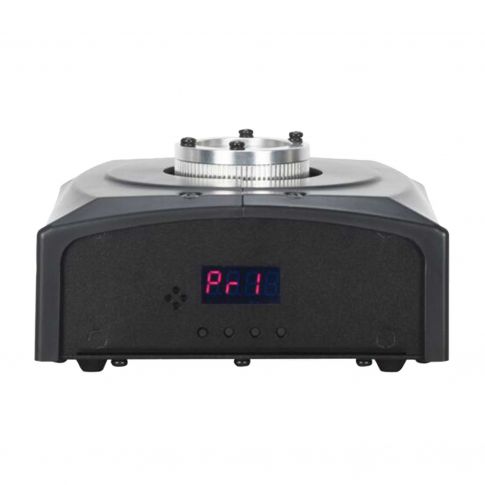

Elation Professional PM-DMX1 Pan Motor with DMX Control

Elation Professional PM-DMX1 Pan Motor with DMX Control for Magmatic Crisp Max Snow Machine

SKU #: PM-DMX1
$480.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

Magmatic PM-DMX1 is an optional pan motor accessory for the Magmatic Crisp Max Snow Machine. Install the output nozzle of the Crisp Max, using the included mounting bracket, onto the PM-DMX1 to precisely control 120 degrees of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit. The PM-DMX1 features 2 DMX channel modes, 0-120 degree position index movement and 3 different degree internal auto-pan programs (60°, 90°, 120°) each having 5 speed settings, a pan inversion mode which inverts the pan movement, primary / secondary modes, 5pin DMX in/out for easy control connection and linking multiple units, an included mounting bracket that better balances weight distribution of the Crisp Max nozzle unit, mini-omega bracket so PM-DMX1 can be clamped and /truss mounted, and a 100-240V auto switching power supply.

Elation Professional PM-DMX1 Pan Motor Features:

  • 120 Degrees of Pan Movement.
  • Manual and DMX-512 Control.
  • 2 DMX Channel Modes.
  • Primary/Secondary Modes.
  • 60°, 90°, 120° Auto-Pan Programs.
  • 5 Auto-Pan Program Speeds.
  • Pan Inversion Mode.
  • Holds up to 35lbs.
  • Includes Mounting Bracket for Crisp Max Nozzle.
  • Includes Omega Bracket for clamp / truss mounting.

Elation Professional PM-DMX1 Product Specifications:
Control / Connections:
Manual and DMX-512 (2 channel modes)
0-120° Pan Movement
Pan Inversion Mode
Primary/Secondary Mode
Auto-Pan Programs and Varying Speeds
4-Button Control Panel
LED System Menu Display
5pin DMX In/Out
AC Power Plug

Size / Weight:
Length: 6.3" (159.0mm)
Width: 5.8" (147.0mm)
Vertical Height w/ Bracket: 13.0" (330.5mm)
Weight w/ Bracket: 5.0 lbs. (2.28kg)

Electrical:
AC 100-240V 50/60Hz
11W Max Power Consumption

Approvals / Ratings:
CE | IP20 | cETL

Each PM-DMX1 Retail Box Includes:
(1) Elation Professional PM-DMX1 Pan Motor with DMX Control for Magmatic Crisp Max Snow Machine
(1) Mounting Bracket
(1) Omega Bracket
