Elation Professional RDMX6S RDM E1.20 Compliant 6-way RDM/DMX Data Splitter
SKU #: RDMX6S
$400.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.

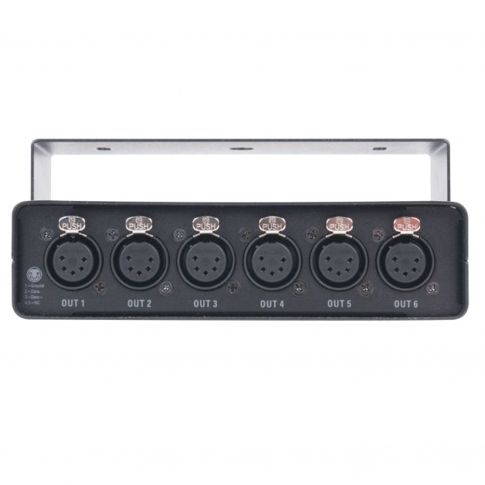

The RDMX6S is an easy-to-use RDM E1.20 compliant 6-way RDM/DMX data splitter featuring a 5pin DMX input, a 5pin DMX loop thru output with built-in termination, and (6) opto-isolated 5pin DMX outputs. Housed in a die-cast aluminum housing, it features a multi-voltage universal auto switching power supply (100-240v), and includes a single unit mounting bracket for truss/clamp installation. Optional single and dual unit rack mount kits are available.
Elation RDMX6S Data Splitter Features:
- RDM E1.20 Compliant.
- 5pin DMX Loop Thru Output with Built-In Termination.
- (6) Opto-Isolated 5pin DMX Outputs.
- powerCON In.
- Universal Multi-Voltage Auto Switching Power Supply.
- Mounting Bracket for Truss/Clamp Installation Included.
- Optional Single and Dual Unit Rack Mount Kits Available.
Elation Professional RDMX6S Specifications:
Control / Connections
5pin DMX Input
5pin DMX Lopp Thru Output w/Built-In Termination
(6) 5pin Opto-Isolated DMX Outputs
powerCON In
Size / Weight
Length: 6.8" (173mm)
Width: 6.7" (170mm)
Vertical Height: 2.9" (74mm) (with mounting bracket)
Weight: 2.1 lbs. (1.0kg)
Electrical / Thermal
AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)
Approvals / Ratings
CE | RoHs
Each RDMX6S Retail Box Includes:
(1) Elation Professional RDMX6S RDM E1.20 Compliant 6-way RDM/DMX Data Splitter
