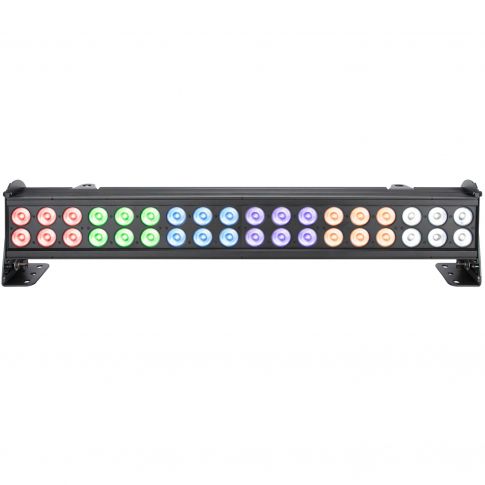

Elation Professional SEVEN Batten 42 3.5' Long Batten Wash Luminaire

Elation Professional SEVEN Batten 42 3.5' Long Batten Wash Luminaire

SKU #: SEVENBATTEN42
$3,080.00
In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in 3-5 business days

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The SEVEN Batten 42 is a seven color 3.5 foot (1m) long batten wash luminaire with (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs. Features include individual hue, saturation, and intensity control, special RGB SEVEN 3 channel mode (RGB + dynamic white, amber, lime, and UV), 6 pixel mapping zones with pixel flip mode, smooth color mixing, 12 internal programs with speed and fade control, 64 unique 7-color macros, selectable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX Art-Net, Kling-Net, and RDM (Remote Device Management) protocol support, 3/5pin DMX, RJ45 etherCON, and power in/out connections, dual 220° manual tilt adjustable mounting brackets, OLED menu display with a 4-button control panel, a multi-voltage universal auto switching power supply (100-240v), a rugged powder coated die-cast aluminum exterior, and an integrated gel / frost filter slot.

Elation Professional SEVEN Batten 42 Wash Luminaire Features:

  • 3.5 Foot (1m) Seven Color Batten Wash Luminaire.
  • (36) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs.
  • Individual Hue, Saturation, and Intensity Control.
  • Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV.)
  • 6 Pixel Mapping Zones with Pixel Flip Mode.
  • Smooth Color Mixing, Internal Programs with Speed and Fade Control.
  • 64 Unique 7-Color Macros.
  • Selectable 16-bit Dimming Curve Modes.
  • Adjustable LED Refresh Rate + Gamma Brightness.
  • Flicker Free Operation for TV and FILM.
  • Art-Net, Kling-Net, and RDM Protocol Support.
  • Dual 220° Manual Tilt Adjustable Mounting Brackets.
  • Rugged Powder Coated Die-Cast Aluminum Exterior.
  • Integrated Gel / Frost Filter Slot.

Elation Professional SEVEN Batten 42 Specifications:
Source
(36) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Effects
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
6 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode

Color
RGBAW + Lime + UV (395nm)

Control / Connections
10 DMX Channel Modes (50 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM Remote Device Management) Protocol Support
3/5pin DMX, RJ45 etherCON, and Power In/Out
With Wired Digital Communication Network

Size / Weight
Length: 42.0" (1066.8mm)
Width: 4.5" (114.3mm)
Vertical Height: 9.0" (228.6mm)
Weight: 39.0 lbs. (17.7kg)

Electrical / Thermal
AC 100-240V - 50/60Hz
614W Max Power Consumption
5°F to 113°F (-15°C to 45°C)

Approvals / Ratings
CE | cETLus | IP20

Each SEVEN Batten 42 Retail Box Includes:
(1) Elation Professional SEVEN Batten 42 3.5' Long Batten Wash Luminaire
(1) Power Cable
(1) Safety Cable
