Elation SideWinder CO2 Simulator Rotating Fog Machine Features:
- 50,000 cu.ft per minute.
- Four, 10-second 20-ft bursts.
- 180° multi position fog burst.
- 22x 3watt RGBA LED's.
- Durable, tour-ready, aluminum housing.

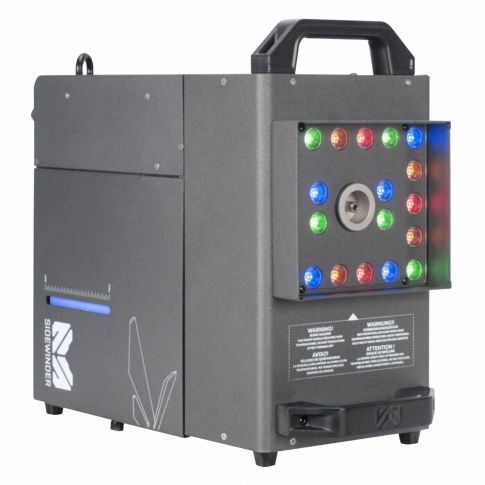

Elation Professional SideWinder Rocket Series High-Velocity CO2 Simulator Rotating Fog Machine
SKU #: SIDEWINDER
$990.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Elation SideWinder Product Specifications:
Rated Power: 1450W
Max Output: 50,000 CFM* (cu ft/min.)
Max Continuous Output: 10 Seconds @ Full
Max Throw Distance: 20 Feet
Initial Ready Time: 9 Minutes
Cycling Ready Time: 1 Minute
Fluid Capacity: 2.5L
Fluid Consumption: 180ml/min.
COMPATIBLE FLUID
Atmosity Extreme Filtered Fog Fluid (AEF-4L)
CONSTRUCTION
Thermally Protected Heat Exchanger
Advanced HPA (high pressure air) Pump Technology
Energy Saving Mode with Auto-Clean Process
Sealed Fluid Reservoir
External Visual Fluid Level Detection
Compact Light Weight Mobile Design
CONTROL
3 DMX Channel Modes (1 / 4 / 7)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional E-FLY Wireless DMX Transceiver
Optional RF Wireless and Wired Remotes
CONNECTIONS
5-pin locking XLR, In/Out Data Connectors
IP65 Locking Input Power Connector
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.25 in. (413mm)
Width: 7.59 in. (193mm)
Height: 14.8 in. (376mm)
Weight: 30.20 lbs. (13.7kg)
ELECTRICAL
AC 100-120V - 50/60Hz
9A (NFB) Resettable Breaker
Max Power Consumption: 1560W
THERMAL
Maximum Ambient Temperature (Ta max) 104°F (40°C)
Exterior Surface Temperature, Steady State: 140°F (60°C)
APPROVALS / RATINGS
CE | cETLus (pending) | IP20
Each SideWinder Retail Box Includes:
(1) 14 AWG Locking Power Cable
(2) Omega Brackets
