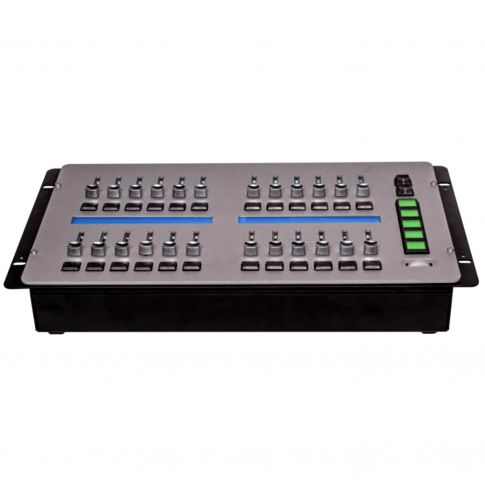

Elation Professional M-Series Submaster Module Lighting Control Console

Elation Professional M-Series Submaster Module Lighting Control Console

SKU #: MSSM01
$3,200.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The M-Series Submaster Module provides the user with an additional 24 handles of controls for cuelists, channels, submasters or inhibitives. Combined with any M-Series consoles or the Martin M-PC, the Submaster Module makes it easy and relatively inexpensive to build a 24, 48 or even 96 fader desk - the perfect startup theater or busking console.

Elation Professional M-Series Submaster Module Lighting Control Console Features:

  • 24 x faders with single-function button (every cuelist type supported.)
  • 2 x 40-character display for labeling.
  • 5 x LCD navigation buttons with scroll wheel.
  • Direct access Up Down buttons for bank change.
  • Tabletop and 19" rackmount format.

Elation Professional Submaster Module Specifications:

M-Series Licensing
M-PC Free - 4 Universes (Artnet, sACN)

Physical
Length: 275 mm (10.9 in.)
Width: 483 mm (19.1 in.)
Height: 128 mm (5.1 in.)
Weight: 4.6 kg (10.2 lbs.)

Control/User Interface
24 x non-motorized faders with single function button (every cuelist type supported)
40-character display for labeling
5 x LCD navigation buttons with scroll wheel

Connections
M-Series Module link USB: Neutrik locking RJ45 Ethercon sockets
USB input: USB device socket
USB devices: USB host socket
Desk lamp: 2.5 mm DC bayonet
AC power input: 3-pin IEC male socket
AC power throughput: 3-pin IEC female socket

Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Main fuse: 2 AT (slow blow)
Desk lamp output: 12 V
AC power output: Unswitched, unfused, max. 6 A

Approvals
EU safety: EN 60950
EU EMC: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US safety (pending): ANSI/UL 60950-1
Canadian safety (pending): CSA C22.2 No. 60950-1
CE

Each Submaster Module Retail Box Includes:
(1) Elation Professional M-Series Submaster Module Lighting Control Console
(1) 1.5 m power cable, 3-pin IEC: P/N 11501012
(1) Ethercon patch cable: P/N 11840144
(1) USB cable: P/N 11840066
