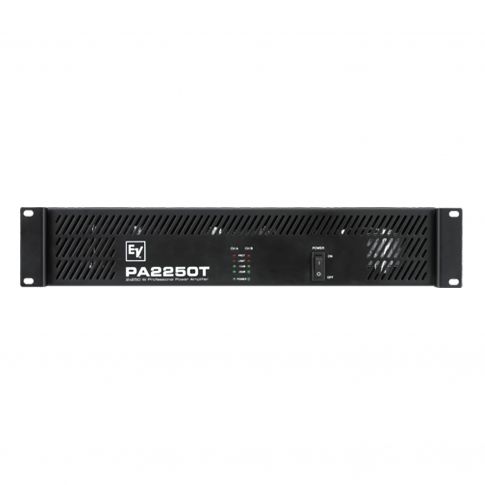

Electro-Voice PA 2250T 520 Watt Dual Channel Commercial Power Amplifier

Electro-Voice PA 2250T 540 Watt Dual Channel Commercial Power Amplifier

SKU #: PA2250T
$1,165.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

Electro-Voice PA 2250T 540 Watt Dual Channel Commercial Power Amplifier

  • Efficient performance for low impedance or distributed systems.
  • Ideal for sound reinforcement, paging, and life safety.
  • 250 W per channel for 4 Ω or 70/100 V lines.
  • Bridged mono out for 540 W into 8 Ω.
  • Compact 2 RU design.
  • Stepped rear-panel level attenuation.
  • Selectable 50 Hz or 300 Hz high-pass filter.
  • Thermal protection, peak limiting, turn-on delay.
  • Phoenix-type inputs and outputs.
  • Three-stage front-to-rear fans.
  • Integrated rack ears for direct mounting.

Electro-Voice PA 2250T Specifications
Amplifier Gain 34.3 dB
Continuous Rated Power (1 kHz, THD 1%) 100v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 4Ω 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 70v 270 Watts
Continuous Rated Power (1 kHz, THD 1%) 8Ω 135 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 100v 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 70v 250 Watts
Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω 125 Watts
Crosstalk < < -75 dB
DIM 30 < 0.1 %
Frequency Response 65Hz - 40kHz
Impedance 4/8 Ω 70V/100V
Input Impedance (Balanced) > 20 kΩ
Input Sensitivity 0 dBu (775mV) @ rated output power or voltage, 1kHz
Intermodulation Distortion (SMPTE) < 0.1 %
Network Control (IRIS-Net) No
Number of Channels 2
Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz 250/125 W 70V/100V-250
Rated output power (*rated load) THD < 1%, 1kHz 270/135 W 70V/100V-270
Signal-to-Noise Ratio (A-weighted) 103 dB
Slew Rate 18 V/µs 70V-41, 100V-61
Total Harmonic Distortion < 0.1 %
Height 2RU 3.46" (88 mm)
Width 19.02" (483 mm)
Depth 15.98" (406 mm)
Weight Net 23.5 kg (51.81 lbs)

The PA 2250T Box Includes:
(1) Electro-Voice PA 2250T
(1) power cord
(1) owner's manual
