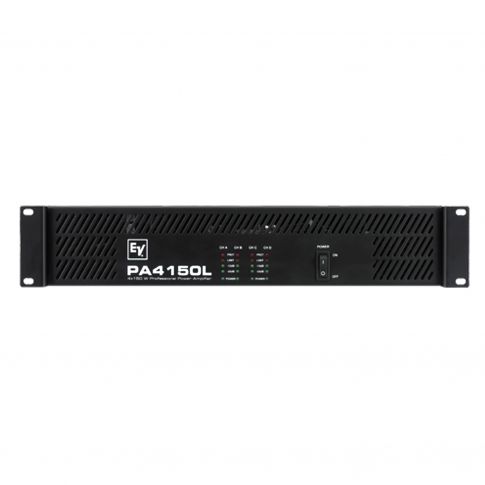

Electro-Voice PA4150L Quad 150 Watt Per Channel Power Amplifier
SKU #: PA4150L
$1,125.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Electro-Voice PA4150L Quad 150 Watt Per Channel Power Amplifier
- Flexible multi-channel power for installation.
- Ideal for sound reinforcement, paging, and life safety.
- 150 W per channel into 4 Ω.
- Bridged mode for dual 315 W outputs into 8 Ω.
- Compact 2 RU design.
- Stepped rear-panel level attenuation.
- Selectable 50 Hz or 300 Hz high-pass filter.
- Thermal protection, peak limiting, turn-on delay.
- Phoenix-type inputs and outputs.
- Three-stage front-to-rear fans.
- Integrated rack ears for direct mounting.
Electro-Voice PA4150L Specifications
| Amplifier Gain | 30 dB |
| Continuous Rated Power (1 kHz, THD 1%) 4Ω | 160 Watts |
| Continuous Rated Power (1 kHz, THD 1%) 8Ω | 100 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 4Ω | 150 Watts |
| Continuous Rated Power (20-20 kHz, THD<0,2%) 8Ω | 75 Watts |
| Crosstalk | < < -75 dB ref. 1kHz, @ 10% rated output power |
| DIM 30 | < 0.1 % |
| Frequency Response | < 10Hz - 40kHz -1dB, ref. 1kHz |
| Impedance | 4/8 Ω |
| Input Impedance (Balanced) | > 20 kΩ |
| Input Sensitivity | 0 dBu (775mV) @ rated output power or voltage, 1kHz |
| Intermodulation Distortion (SMPTE) | < 0.1 % |
| Network Control (IRIS-Net) | No |
| Number of Channels | 4 |
| Rated output power (*rated load) THD < 0.2%, 20Hz – 20kHz | 150/75 W 4Ω/8Ω |
| Rated output power (*rated load) THD < 1%, 1kHz | 160/100 W 4Ω/8Ω |
| Signal-to-Noise Ratio (A-weighted) | 101 dB |
| Slew Rate | 16 V/µs |
| Total Harmonic Distortion | < 0.1 % |
| Height | 2RU 3.46" (88 mm) |
| Width | 19.02" (483 mm) |
| Depth | 15.98" (406 mm) |
| Weight Net | 18 kg (39.68 lbs) |
The PA4150L Box Includes:
(1) Electro-Voice PA4150L
(1) power cord
(1) owner's manual
