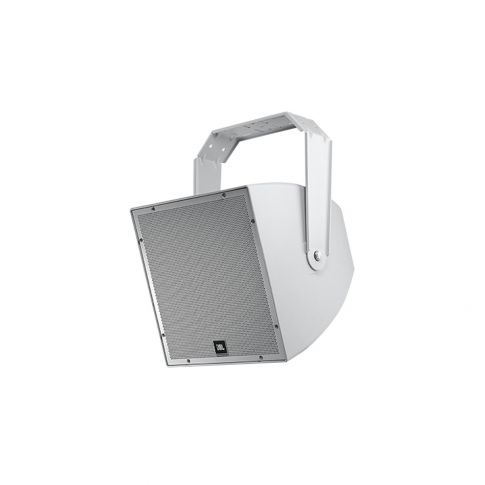

JBL Professional AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker

JBL Professional AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

SKU #: AWC129
$975.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Only at IDJ NOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

JBL Professional AWC129 Compact Coaxial Speaker Features:

    • Highly weather-resistant IP56 rating.
    • Consistent 90° x 90° broadband pattern control.
    • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
    • Extraordinary clarity for speech, with extended frequency response for music.
    • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
    • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
    • High-power passive crossover network.
    • Overload protection.
    • 55 Hz - 20 kHz frequency response.
    • 200 Watt 70V/100V multi-tap (built-in transformer.)
    • direct 8Ω low-impedance.

JBL Professional AWC129 Product Specifications:
Frequency Range (-10dB) 55 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 20 kHz
Coverage Pattern 90° x 90°
Directivity Factor (Q) 10.1 (1 k - 16 kHz)
Directivity Index (DI) 9.5 dB (1k - 16 kHz)
System Power Rating 400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
Sensitivity (2.83V  @ 1m) 96 dB (Ave. 80 Hz - 20 kHz)
Maximum SPL (1m) Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
Crossover Network 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance 8 ohms
Transformer Taps 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
LF Driver Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
HF Driver 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver Protection Minimum audibility SonicGuard HF overload protection
Enclosure ABS with Glass enclosure, heavily braced
Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
Dimensions 402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
Colors Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight (each) 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
Shipping Weight 23.4 kg (51.5 lbs)
Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Suspension Attachment Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.

Each AWC129 Retail Box Includes:

(1) JBL Professional AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF
(1) U-bracket
