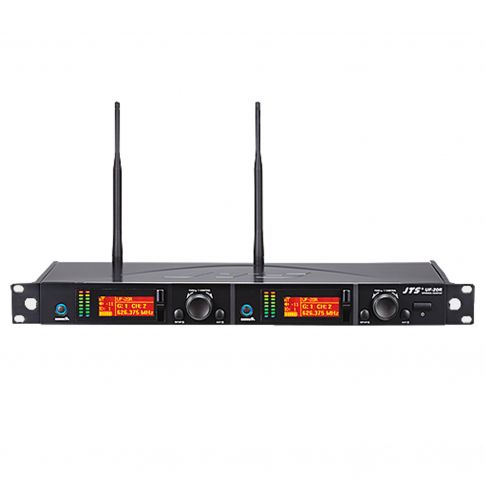

JTS UF-20R UHF Dual Channel Wideband True Diversity Wireless Receiver
SKU #: UF-20R
$999.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
JTS UF-20R UHF Dual Channel Wideband True Diversity Wireless Receiver
UF-20R Features:
- UHF True diversity technology renders 200-480 meters of operation distance.
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz.
- Preset 15 groups each of up to 63 compatible channels.
- User programmable 6 groups each of 64 channels.
- Free space scan function.
- JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button.
- JTS LCX circuit design technology minimizes companding noise.
- The UF-20R now not only sends the frequency data but also transmitter's RF power, sensitivity, low cut, key lock and user's name.
- RF "NO SIGNAL" alert function.
- AF "MUTE" alert function.
- Transmitter "LOW BATTERY" alert function.
- Built in equalizer
- Power / Antenna cascading output provided.
JTS UF-20R Specifications
| UF-20R |
|
Frequency Preparation |
PLL Synthesized Control |
| Frequency Setting | JTS patented obstacles-free RF REMOSET |
| Carrier Frequency Range | UHF 470~960 MHz |
| Channel | Dual |
| Bandwidth | 60~75MHz Wideband |
| S / N Ratio | > 108dB (A) |
| T.H.D | <0.5% @ 1KHz |
| Chassis | 1U standard metal chassis |
| Preset Channels / Group |
* From group 1 ~ 15 up to 63 interference-free compatible channels. |
| Display | LCD |
| Display Contents | Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch |
| Sensitivity | 6dBμV, at S / N> 80dB |
| Receiving Mode | True diversity |
| Audio Output Level | Maximum 6dBu |
| Receiving Mode | True diversity |
| Audio Output Level | Maximum 6dBu |
| AF Output Impedance | 600Ω |
| Frequency Response | 50Hz ~ 18kHz, with high-pass filter |
| Squelch | Pilot Tone & Noise Mute |
| Power Supply | 100 ~ 240V or 12V DC |
| Output Connector | 2 XLR Balanced Socket 2 Ø6.3mm Unbalanced phone jack |
| Dimension (m / m) | 480mm (W) 45Mmm (H) 260mm (D) |
| Notes | Actual product specifications may vary depending on model and region. |
The UF-20R Box Includes:
(1) JTS UF-20R UHF Dual Channel Wideband True Diversity Wireless Receiver
