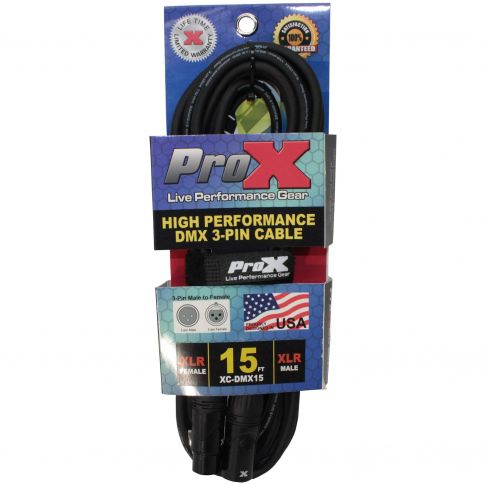

ProX XC-DMX15 15ft 3Pin High Performance DMX Cable

The ProX XC-DMX15 is ideal for professional lighting applications where a device with a male DMX output/input needs to be connected to a device with a female DMX output/input. 22AWG Oxygen-Free Copper (OFC) conductors for maximum signal transfer.

Bending and twisting are no match for these high performance tour-grade cables. They're designed to provide years of dependable data transmission and outlast every other cable on the market.

ProX knows cables are not just cables, they are what protects your DMX data from being altered. Uncompromised signal power, throughput, and pure data is what ProX is passionate about.

ProX XC-DMX15 15ft 3Pin High Performance DMX Cable Features:

• Gold Plated all metal XLR connectors for excellent durability and superior signal transfer.
• Polyethylene insulation.
• Twisted pair data cable.
• Polyethylene inner jacket.
• Duofoil (100% coverage) shield to reduce noise and protect pure data transfer.
• 100 Ohm Impedence Twisted Pair.
• Cotton plus a tinned copper braid shield (85% coverage.)
• PVC jacket.
• Nominal Characteristic Impedence: 110 Ohms.
• Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft.
• Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft.
• Nominal Velocity of Propagation: 66%.
• Nominal Delay: 1.6 Nanoseconds per foot.
• Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft.
• Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft.
• Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft.
• Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C.
• Operating Temperature Range: (-30 degrees C To + 75 degrees C.)
• ProX Limited Lifetime Warranty.
