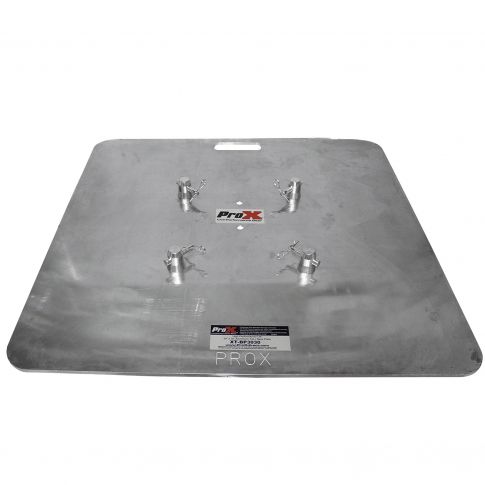

ProX XT-BP3030A 30" x 30" Aluminum Base Plate with Conical Connectors
SKU #: XT-BP3030A
Reg.
$299.99
Now
$272.40
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
The ProX XT-BP3030A 30" X 30" Aluminum 8mm Base Plate for F34 F32 F31 Conical Square Truss with Connectors is made with EN-AWT6 5052 Aluminum Plate, and weighs 28lbs each. Most professionals trust ProX for the quality and reliability of their products. Its robust build gives you all the confidence you need when combining your truss segments and/or any other compatible products.
Includes connecting hardware set.
ProX Truss products utilize industry standard dimensions to be compatible to connect with many other manufacturers' trussing.
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
ProX XT-BP3030A 30" x 30" Aluminum Base Plate Features:
- Compatible with other brands.
- For F34 Truss Segments.
- 6mm Plate Thickness
- Material: EN-AWT6 5052.
- Smooth Rounded Edges.
XT-SQ Series Dimensions:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
ProX XT-BP3030A Specifications:
To Fit
Most F34, F32, F31 Truss Brands with Conical Connections
Dimensions
30.00" L x 30.00" W x 2.00" H
Weight: 28.00 lbs
Shipping Dimensions
30.50" L x 30.50" D x 2.50" H
Shipping Weight: 33.00 lbs
UPC
741459148010
Each XT-BP3030A Retail Box Includes:
(1) ProX XT-BP3030A 30" x 30" Aluminum Base Plate with Conical Connectors
(1) Set of Connecting Hardware
