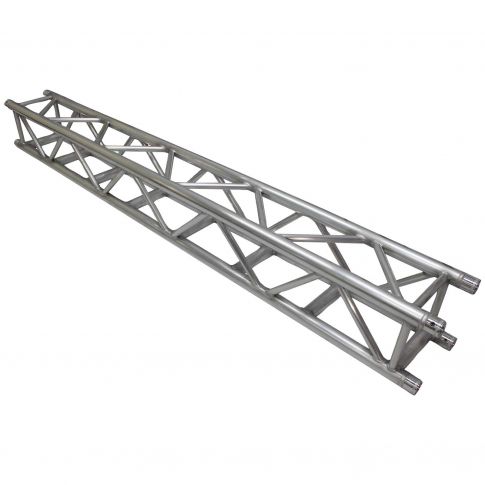

ProX XT-SQPL820 8.20 ft-2.50m F34 Professional Truss Ladder Segment | 3mm Wall

The ProX XT-SQPL820 8.20 ft - 2.50m F34 Professional Truss Ladder Segment | 3mm Wall is compatible in design with standard F34 Trussing but with a ladder brace on one side for safe climbing and with thicker tube walls for enhancing vertical load capacity in combination with standard main rig trussing. Prox Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and heavy-duty trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations. Also available in 3 meters and 1 meter.

The Easy to Climb, Professional Ladder Truss is square truss that has one side as a ladder with 2" tubes with 9 3/4" spacing and utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors and accessories that add stability while expanding on limitless configurations.

It is important to note that ladder truss is designed to be installed in a vertical orientation. It is typically used at the lift/support points of a truss roofing system or indoor truss structure to make climbing of the structure easier and safer. It should not normally be used in a horizontal position. However, because it has 3mm wall tubes it will still be as strong as the 2mm tube standard XT-SQ trussing and the loading chart for the XT-SQ Truss should be used. The ladder side has no diagonal bracing so if ever used horizontally the ladder side should be oriented down. ProX Truss products utilize industry standard dimensions to be compatible to connect to, and work with, many other manufacturers F31/F32/F34 trussing products with conical connectors.

ProX XT-SQPL820 8.20 ft F34 Truss Ladder Segment Features:

• Tolerance Free Standard Conical Connectors.
• PL Series Main tube wall thickness of 1/8in / 3mm.
• Constructed to the highest safety ratings by certified welders.
• Actual Height: 8.20 ft (2.5 Meters) Pro Square Truss Ladder Segment.
• Manufactured to Exacting Specifications in ProX's Own Factory.
• TÜV Certified Welding.
• Compatable with most Conical Coupled trussing.
• Includes tapered shear pins with clips.
