Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D)

SKU #: PA805Z2-RSMA
$284.00

Notify me when in stock

We'll let you know once this product is back in stock. Simply add your email address and click the "Notify Me" button. As soon as we have more you will receive a notification.

Item Backordered

Expected June 30, 2025

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

8000+ Reviews

8000+ Reviews

95%+5-star reviews>

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

A key part of any GLX-D Advanced Digital Wireless installation, PA805Z2-RSMA works exclusively with GLX-D Advanced. Includes 10' RSMA cable.

Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D) Features:

  • Improved wireless reception: 8 dB of passive directional antenna gain.
  • Improved rejection of interference from 2.4GHz sources.
  • 24dB front-to-back ratio for improved rejection of off access signals.
  • Includes 10' RMSA cable.

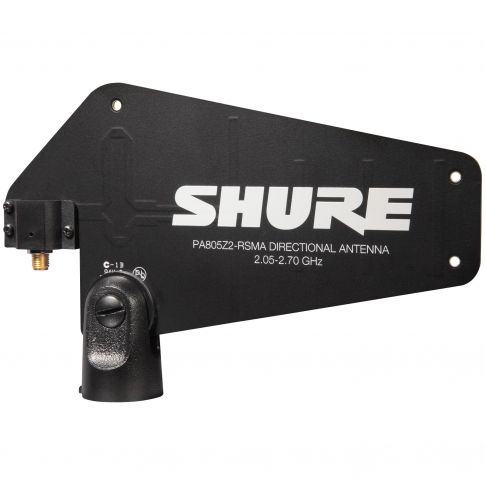

The Shure PA805Z2-RSMA is a passive directional antenna that improves RF performance by rejecting off-axis RF signal. Positioned remotely, antennas can be aimed directly at transmitters.

The antenna attaches to a microphone stand or to the separate wall-mounting bracket, and delivers the following benefits over standard omnidirectional half-wave antennas:
  • Reduced interference
  • Improved RF signal-to-noise ratio
  • Antenna gain (8 dBi) helps overcome cable loss

Shure PA805Z2-RSMA Specifications:

Frequency Range
<2:1 Voltage Standing Wave Ratio (VSWR)
2050 to 2700 MHz

Antenna Gain
@ 2.45 GHz, typical
8 dBi

3 dB Horizontal Beam Width
100 degrees

Efficiency
@2.45 GHz, typical
89 %

Impedance
50 Ω

Polarization
Linear

Front-to-back ratio
@ 2.45 GHz, typical
24 dB

Connector Type
Reverse SMA

Dimensions (H x W x D)
4.1" x 6.4" x 1" (105 x 164 x 27.5 mm)

Net Weight
0.15lb / 2.5 oz.

Each PA805Z2-RSMA Retail Box Includes:
(1) Shure PA805Z2-RSMA Passive Directional Antenna (GLX-D)
(1) 10' RSMA cable
