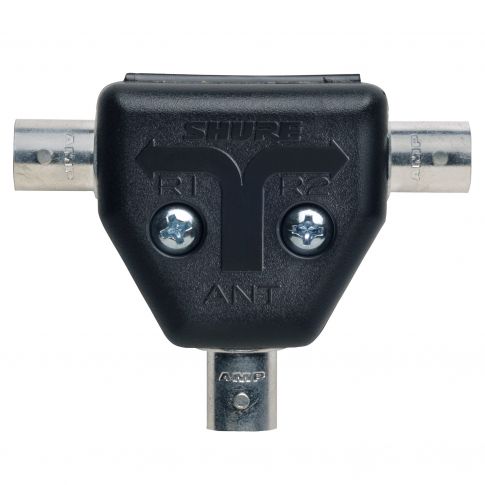

Shure UA221 Passive Antenna Splitter
SKU #: UA221
$197.00
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Passive antenna splitter splits an incoming signal into 2 outgoing signals or combines 2 incoming signals into 1 signal. The kit includes 2 UA221 Splitters/Combiners, 4 coaxial cables, and attaching hardware. UA221 splitters are intended for use with Shure Wireless Systems.
Shure UA221 Product Specifications:
RF Carrier Frequency Range: 10 to 1,000 MHzVoltage Wave Standing Ratio (VSWR): 1.2
Impedance: 50 Ω
Isolation: 20 dB
Insertion Loss: 2 dB
Overall Dimensions: 63.5 mm x 48.2 mm x 22.3 mm (2.5 in. x 1.9 in. x 0.9 in.)
Weight: 45.3 g (1.6 oz)
Each UA221 Retail Box Includes:
(4) 0.5 m (2 ft.) Coaxial Antenna Cable
(2) BNC Bulkhead Adapters, lockwasher, nut
(2) BNC Male-to-Male Adapter
