Yamaha Pro Audio MG12XCV 12-Input 4 Bus Mixer with Carry Bag Package
SKU #: MG12XCVNCABLESBAG
Reg.
$585.18
Now
$489.40
Reg.
Item Backordered
Expected June 30, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
8000+ Reviews
95%+5-star reviews>
30-Day Returns
Don't Like it? Return most items.
Housed in a rugged steel chassis, the MG12X CV can accommodate up to 12 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class A microphone preamplifiers for pristine sound, it includes Aux busses for the built-in SPX effect with 24 presets and another for monitoring. Four channels of single-knob compression are available. The MG12X can accept XLR, ¼" Phone and RCA type pin jack inputs, and offers XLR and Phone outputs. The MG12X offers faders, and lit channel on/off switches for easy visual indication of settings. A footswitch input allows hands free effect muting. The MG12X CV can be rack mounted witht the optional RK-MG12 Rack mount kit.
Yamaha Pro Audio MG12XCV Mixer Features:
- Rugged, Powder-coated steel chassis for superior durability.
- Discrete Class-A microphone preamps .
- Built-in SPX digital effects with 24 programs.
- Switchable +48V Phantom power.
- Color coded controls offer easy operation.
Yamaha Pro Audio MG12XCV Product Specifications:
| Frequency Response Input to STEREO OUT | +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Total harmonic distortion (THD+N) Input to STEREO OUT | 0.03 % @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min |
| Hum & Noise (20 Hz to 20 kHz) | Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150 Ω, GAIN knob: Max) Residual Input Noise: -102 dBu (STEREO OUT, STEREO master fader: Min) |
| Crosstalk (1kHz) | -78dB |
| Input Channels | Mono [MIC/LINE]: 4 Mono/Stereo [MIC/LINE]: 2 Stereo [LINE]: 2 |
| Output Channels | STEREO OUT: 2 MONITOR OUT: 1 PHONES: 1 AUX SEND: 2 GROUP OUT: 2 |
| Bus | STEREO: 1 GROUP: 2 AUX SEND: 2 (incl. FX) |
| Input Channel Function | Pad (Mono): 26dB HPF (Mono, Mono/Stereo): 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) COMP (Mono): "1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec" High: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving EQ Mid: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking Low: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving Peak LED (mono): LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6,+3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
| Internal Digital Effect | SPX Algorithim: 24 programs |
| Phantom Power Voltage | +48V |
| Power Requirements | AC 100 - 240 V, 50/60 Hz |
| Power Consumption | 22W |
| Dimensions (W x H x D) | 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6") |
| Net Weight | 4.2 kg (9.3 lbs.) |

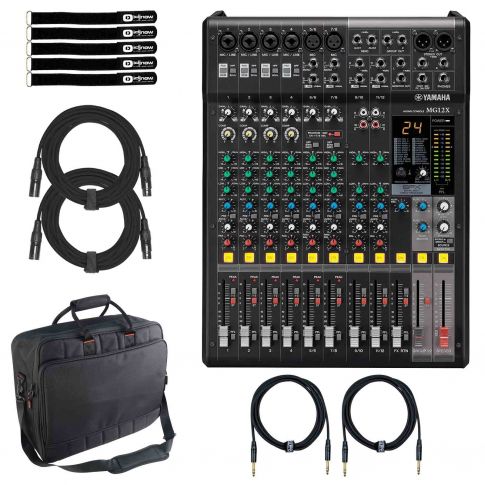

This Package Includes:
(1) Yamaha Pro Audio MG12XCV 12-Input 4 Bus Mixer with Effects(1) Properly Fitting & Durable Protective Transport Bag
(2) Clutch 20' Sure-Fit XLR Female to XLR Male Microphone / Speaker Cables
(2) Clutch 10' Sure-Fit 1/4" TRS to 1/4" TRS Cables
(5) 8" Reusable Hook and Loop Cable Ties
